VERTICAL RACK - 41 Series
(click here for PDF file)

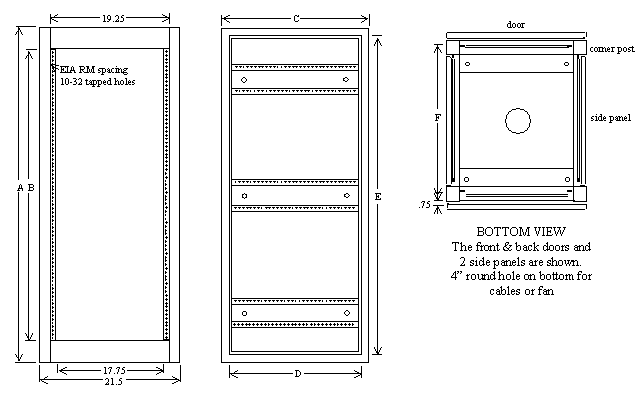

Our full featured 19" racks are designed unlike any other racks. We use the strongest construction on the knock down racks. A welded side frame with roll form tube is used as the corner post for optimal quality and lowest cost. These racks are designed to be easily bolted together, to become a modular multi-bay configuration. The 4 mounting rails are 3/16" thick with fully tapped 10-32 screw holes on the EIA universal spacing. The 18 gauge side panels with reinforced brackets are removable. Optional front and back doors are available. FEATURES: Knock-down unit reduces shipping cost by 50% Roll form corner post for strength and rigidity Modular design can be used as multi-bay rack Easy installation using 2 screws on each corner All hardware and rubber casters included Provides 60 10-32 ss screws and nylon washers Optional front and back doors

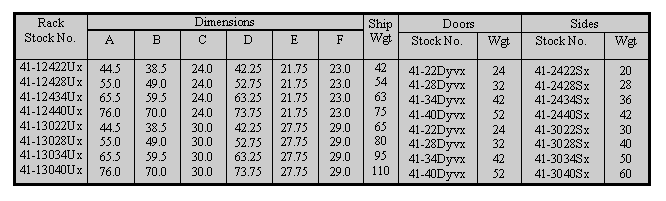

ORDERING INFORMATION:      Our rack can be shipped in either knock-down or assembled form. The knock-down rack can be shipped in 3 packages by UPS, or it can be shipped with pallet by truck if it is assembled or ordered in large quantity.      Unit comes complete with top, bottom, 2 side frames with front & back mounting rails, 4 hard rubber casters / floor levelers, screws for assembly, and a quantity of 2xRU stainless steel screws (10-32) with nylon washers.      Optional side panels and doors are ordered separately. You may only need one pair of side panels for a multi-bay configuration. Doors can be vented, flash handle, or lock handle.

	Rack mount shelves, computer shelves, monitor shelves, keyboard drawers, turret shelves, slide assemblies, fan assemblies, and power strips are available from stock. Detailed information can be found in this catalog. Please call for special applications.
